Touchscreens

iNav4U touchscreens are built for exposed helm positions: sunlight readable, and waterproof to IP67 front and back. A touchscreen needs a Mini PC to drive it; one Mini PC drives up to three.

Sizes

All four sizes share the same housing design, touch and connections, described under Every size. Only the size and the resolution differ. The drawings give approximate outside dimensions on the bracket.

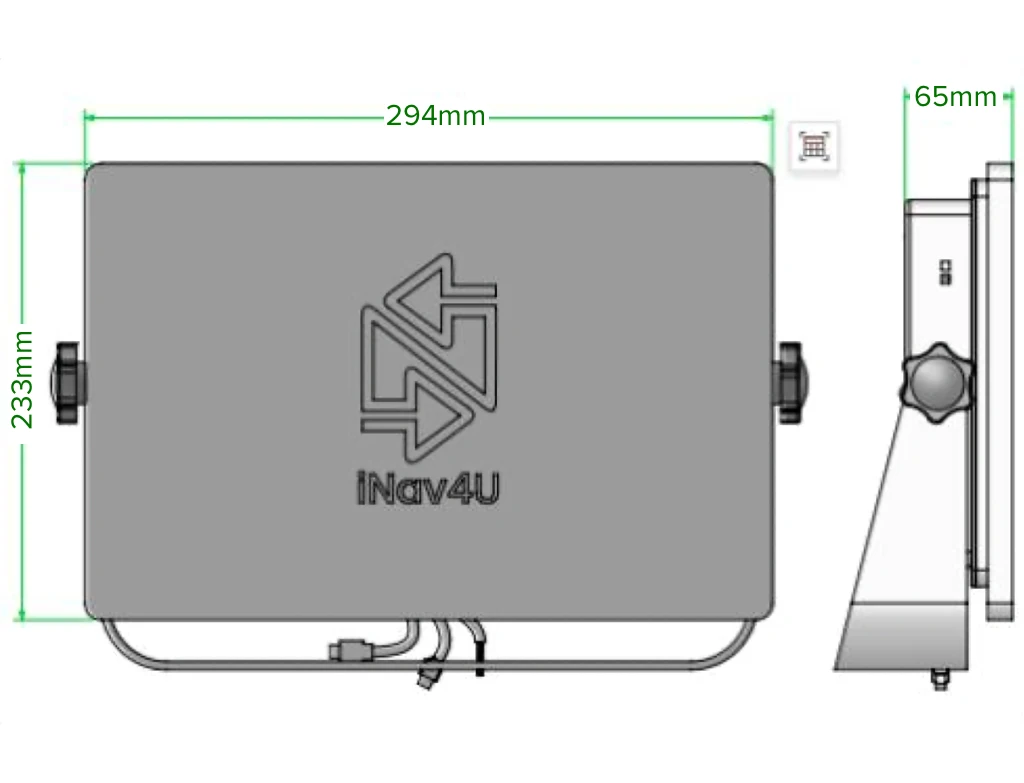

12.1 inch

1280 x 800. In the store: Touchscreen 12" 4:3.

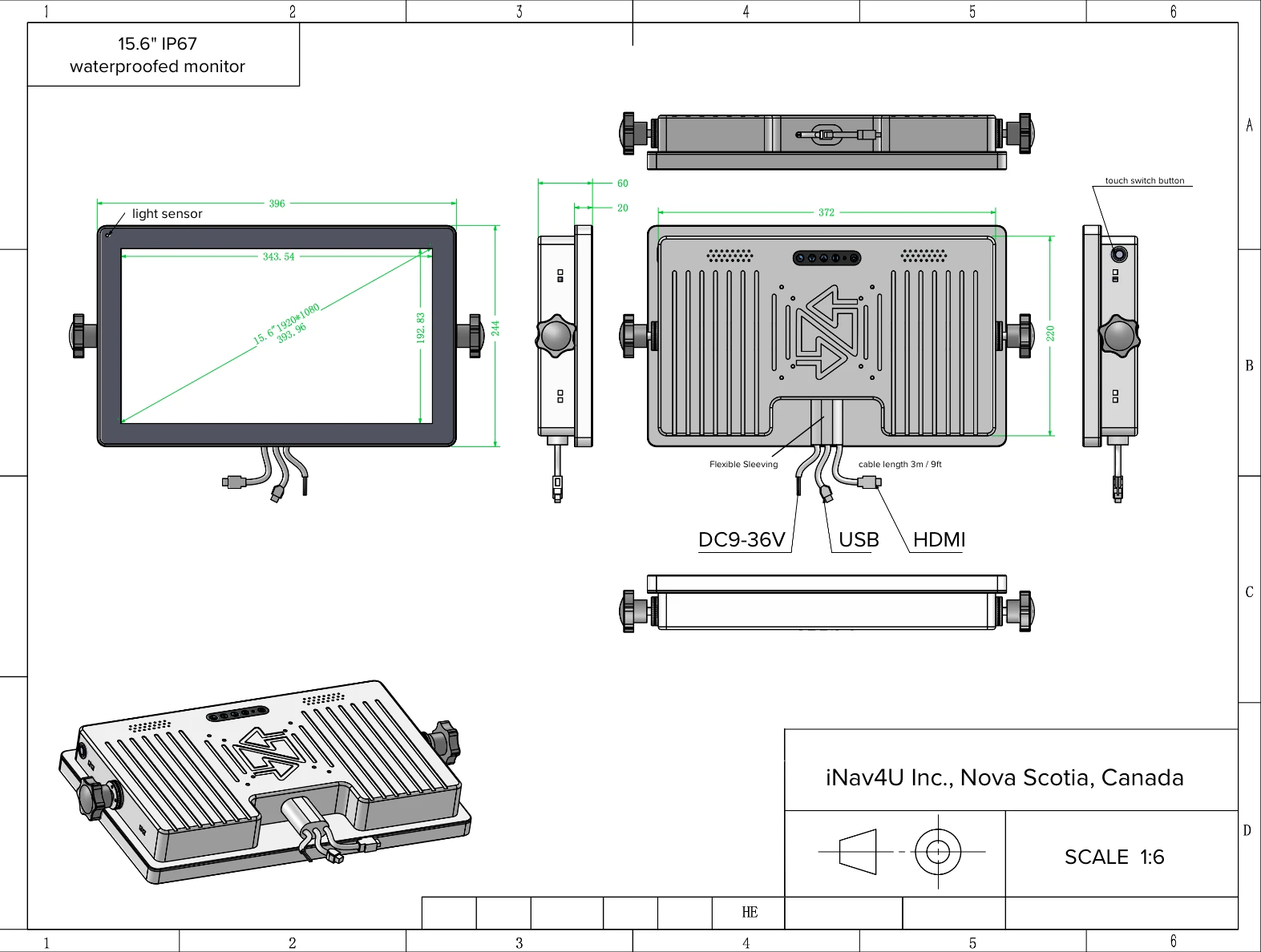

15.6 inch

1920 x 1080. In the store: Touchscreen 15.6" 16:9.

18.5 inch

1920 x 1080. In the store: Touchscreen 18.5" 16:9.

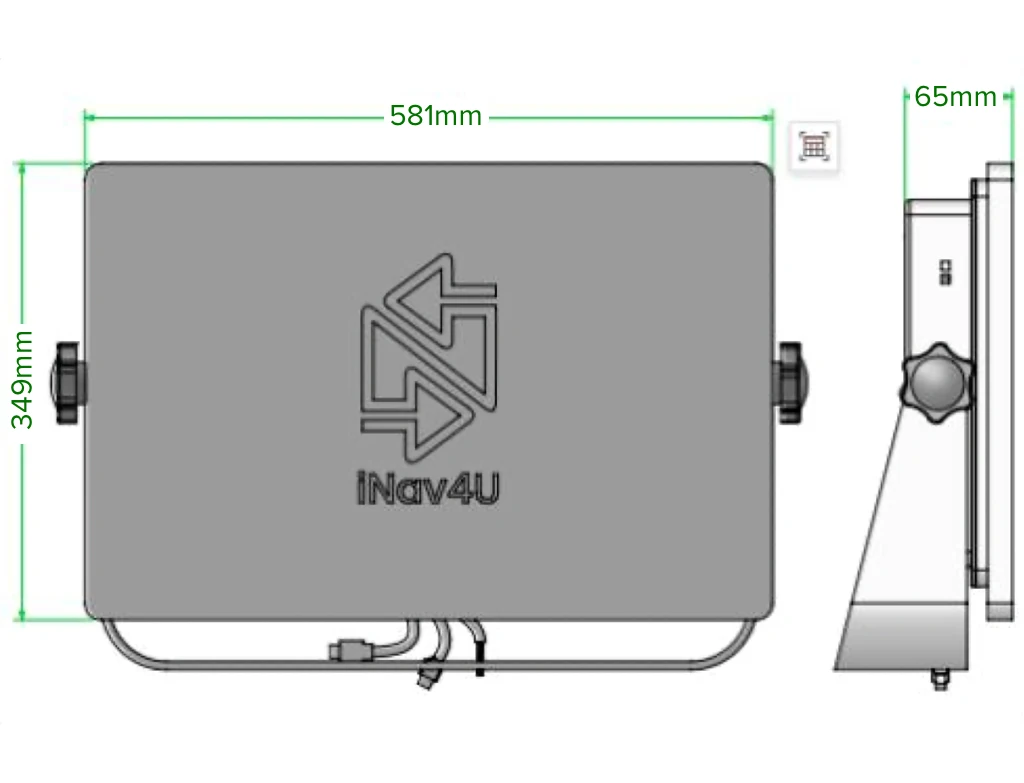

23.8 inch

1920 x 1080. In the store: Touchscreen 23.8" 16:9.

Every size

• Aluminium housing, IP67 front and back.
• 10-point touch that keeps working with water drops on the screen.
• Anti-glare glass, optically bonded so it does not fog up inside.
• One 3 m cable carries HDMI, USB (for touch) and power. The HDMI and USB ends go to the Mini PC.
• Power: 9 V to 36 V DC, up to 35 W.
• The screen switches on as soon as it has power. Its power button is on the side; there are no buttons or logo on the front.
• A waterproof speaker in the rear housing.

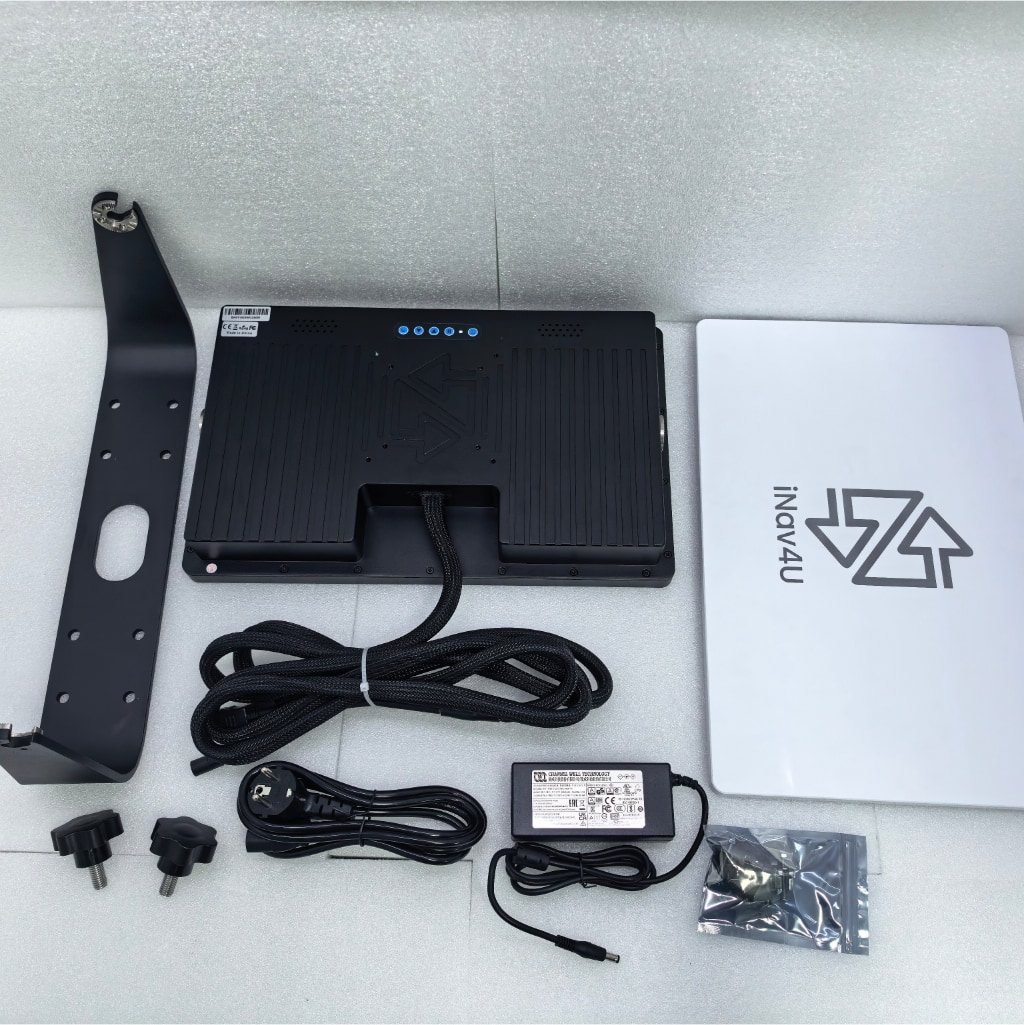

• Comes on a U-bracket. It also fits a VESA 75 or VESA 100 mount, in landscape or portrait.
• CE, FCC and RoHS. One year warranty.
